AquaVent 5 Specifications

AquaVent 5 Logger Specifications
Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Accuracy: ± 0.05% FS Typical
Stability of Readings: Superior, low noise
Units of Measure: m, cm, ft., psi, kPa, bar, ºC, ºF
Resolution: 0.001% FS to 0.0006% FS
Normalization: Automatic Temperature Compensation
Temp. Comp. Range: 0º to 50ºC

Temperature Sensor: Platinum Resistance Temperature Detector (RTD)
Operating Temperature: -20ºC to 80ºC
Temp. Sensor Accuracy: ± 0.05ºC
Temp. Sensor Resolution: 0.003°C

Battery Life: 8 Years — based on 1 reading/minute
Clock Accuracy (typical): ± 1 minute/year (-20ºC to 80ºC)

Maximum # Readings: 150,000 sets of readings
Memory: Slate and Continuous
Communication: 57,600 bps Solinst USB, 1200 baud SDI-12, Modbus RS-485/RS-232 (various speeds)

Size: 22 mm x 173 mm (7/8" x 6.8")
Weight: 190 grams (6.7 oz.)
Corrosion Resistance: Baked-on coating using polymerization technology (inside and out)
Wetted Materials: Delrin®, Viton®, Polyurethane (TPU boot), 316L stainless steel, Hastelloy, PFAS-free PTFE coating

Sampling Modes: Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View
Measurement Rates: 1/8 sec to 99 hrs
Barometric Compensation: Automatic





Models Full Scale (FS) Accuracy
M5 5 m (16.4 ft.) ± 0.3 cm (0.010 ft.)
M10 10 m (32.8 ft.) ± 0.5 cm (0.016 ft.)
M20 20 m (65.6 ft.) ± 1 cm (0.032 ft.)





AquaVent 5 SPX Wellhead
Materials: Polypropylene, Delrin, 316 stainless steel, Viton, Polyamide
Dimensions: 102 mm x 140 mm (4.0" x 5.5")
Operating Temperature: -20ºC to 80ºC
IP Rating: IP 64 (dust and splash proof)
Batteries: Four (4) 1.5V AA lithium batteries
Wellhead Comm. Cable Length: 15 ft (4.5 m)





AquaVent 5 Vented Cable
Wetted Materials: Polyurethane, Nickel plated Brass, Viton
Diameter: Cable: 8 m (0.32") Connectors: 20 mm (0.79")
Lengths: 1 to 500 ft
Max. Bend Radius: 25 mm (1")
Operating Temperature: -20ºC to 80ºC



solinst datagrabber 5 data transfer device for solinst dataloggers

DataGrabber 5

The DataGrabber 5 is a field-ready data transfer device that allows you to copy data from an AquaVent 5 onto a USB flash drive key, with one push-button (dual USB & USB-C key provided). The DataGrabber 5 is compact and very easy to transport.

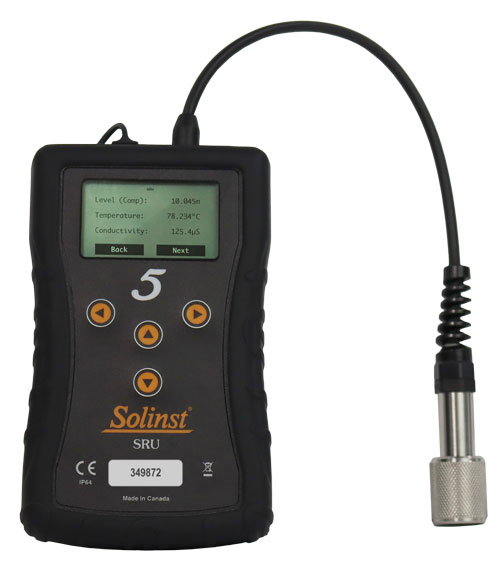

Solinst Readout Unit Sru For In Field Use Of Solinst Dataloggers

Solinst Readout Unit (SRU)

Connect an SRU to an in-field AquaVent 5 using a Wellhead Communication Cable to display instant water level readings and datalogger status, save a real-time logging session, and download data to the SRU memory.
