Flexible Datalogger Communication Options

The AquaVent 5 has options for communicating with Solinst software and accessories, or integrating into a Solinst Telemetry System, SCADA/PLC system or a third-party datalogger.

The AquaVent 5 communicates with Levelogger Software and can be used with the Solinst Levelogger 5 App Interface and the DataGrabber 5.

For deeper, hard to access applications, or areas that are humid or prone to flooding, the Levelogger 5 absolute pressure water level datalogger is also an option (see Model 3001 Levelogger 5 Series Data Sheet).

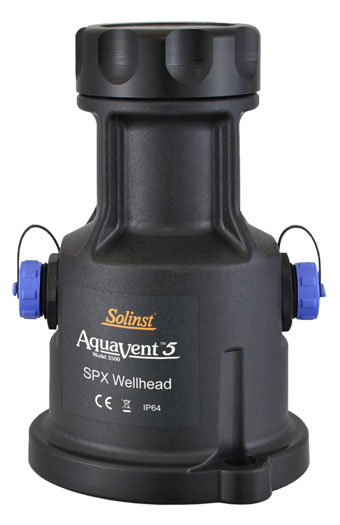

AquaVent 5 Communication Wellhead

The AquaVent 5 Communication Wellhead fits conveniently onto a 2" (50 mm) well casing using the well cap base (a 4" well adaptor is available).

The SPX Wellhead has a connection for communicating with Solinst software and accessories, and a second connection for communicating with third party dataloggers or telemetry systems using MODBUS (RS-232/RS-485) or SDI-12 protocols.

The Wellhead contains 4 1.5V AA lithium batteries that power the AquaVent 5 logger. They are user-replaceable and can last 8 years based on 1 reading per minute (the internal AquaVent 5 logger battery is only used to maintain the clock).

For permanent moisture protection, the Wellheads contain multiple built-in desiccants and have a hydrophobic filter where the vented cable terminates at surface.



One 10-Pin Connection for Solinst Software and Accessory Connector Cables

solinst aquavent 5 dataloggers aquavent 5 communications aquavent 5 datalogger communications aqua vent 5 datalogger communications image

SPX Wellhead

Additional 12-Pin Connection for SDI-12 and MODBUS RS-232 and RS-485 Connector Cables



AquaVent Wellhead Communication Cables

There are multiple ways to communicate with the AquaVent; convenient Wellhead Cables are available for each option.

solinst aquavent 5 aquavent 5 dataloggers aquavent 5 communications aquavent 5 datalogger communications aqua vent 5 datalogger communications image

USB Connector Cable for Communicating with Solinst Levelogger PC Software

solinst aquavent 5  aquavent 5 dataloggers aquavent 5 communications aquavent 5 datalogger communications aqua vent 5 datalogger communications image

Connector Cable for Communicating with the Levelogger App Interface and DataGrabber



solinst aquavent 5 aquavent 5 dataloggers aquavent 5 communications aquavent 5 datalogger communications aqua vent 5 datalogger communications image

Connector Cables for Communicating
using SDI-12 and MODBUS RS-232/RS-485 Protocols



solinst aquavent 5 dataloggers aquavent 5 communications aquavent 5 datalogger communications aqua vent 5 datalogger communications image

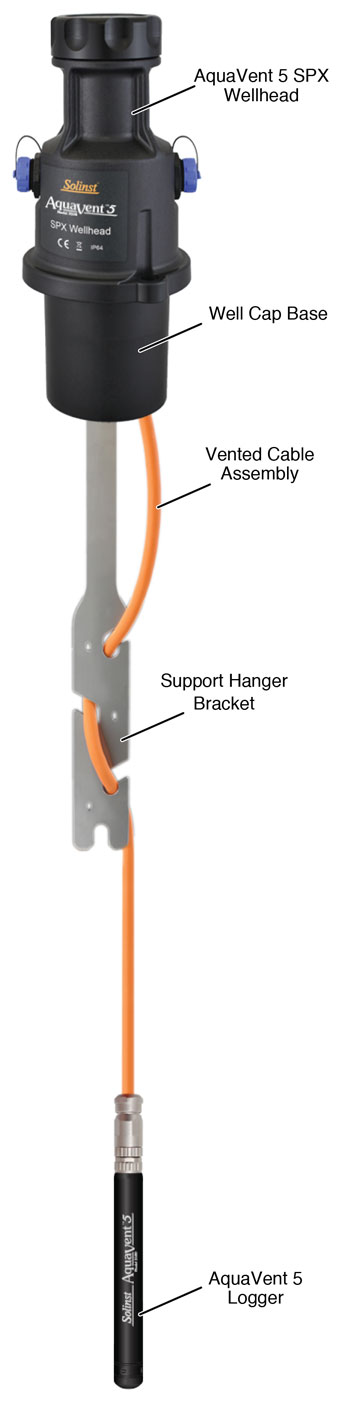

AquaVent 5 Vented Cable Options

AquaVent 5 Vented Cable assemblies are available in custom lengths of up to 500 feet.

Vented cables contain power and communication wires, as well as a vent tube running the length of the cable. Vented cables provide direct read communication from the AquaVent 5 logger to the Wellhead. The vent tube and wires are jacketed in polyurethane, providing durability and protection.

The vented cables are easily and securely connected to the AquaVent 5 logger and Wellhead, using stainless steel twist connections. A hanger bracket is included with each Wellhead to support the vented cable when deployed.

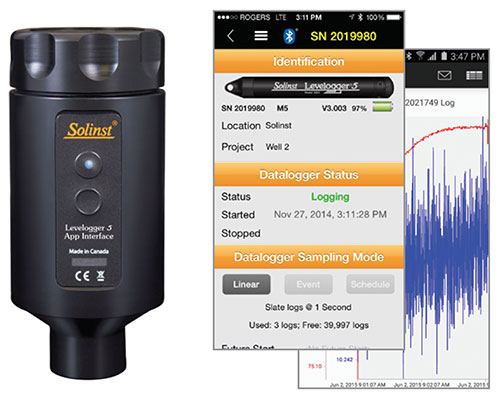

Solinst Levelogger 5 App Interface

The Levelogger 5 App Interface uses Bluetooth® technology to connect your AquaVent 5 to your smart device. With the Solinst Levelogger App, you can download data, view real-time data, and program your AquaVent 5. Data can be e-mailed from your smart device directly to your office (see Model 3001 Levelogger 5 App Interface Data Sheets).

solinst levelogger 5 app and interface
